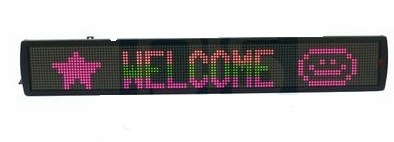

Large-scale information board for indoors and protected areas

Ideal for welcome, announcements, special evetns, orientation etc.

With 5-mm-LEDs for ideal readability from up to 25 meters distance

Colour and background colour freely selectable via red/green/yellow LEDs

High resolution with 54 mm character height per display line

Double-line display with up to 21 visible characters per line

93 standard characters (letters/numbers) capitalized/small letters, symbols and language specific characters

14 fonts, 13 more fonts can be imported

Fonts-manager for selecting different fonts, font sizes, letter cutting (bold) and for completely redesigning fonts

Flash adjustable for emphasizing the message

50 different display-effects (e. g. scroll up) freely selectable for In Mode and Out Mode

6 different speeds adjustable

Display time of the message adjustable between 0 and 60 seconds

Playlists of individual messages programmable

With Timer-function (operation intervals and ignore times freely programmable)

Permanent Flash-memory with 1 GB capacity

Easy installation and comfortable operation via remote-control (optional)

Installation clamps and wall mounting included in the delivery

Software-CD included in the delivery for comfortable programming

Time display in different formats (24 h, 12 h AM/PM, seconds, time zone)

Date in differnt styles (DD.MM.YYYY, US/UK or MM.DD.YYYY)

Selection of year, month or day of the week in letters or numbers

Freely programmable graphic-patterns via Picture Manager

Net Manager for operating several Moving Messages

Interfaces via RS232 (serial) or Ethernet (TCP/IP-protocol)

RS232-connection via RJ11 plug and 9-pin SUB-D socket

10 m data-cable for RS232-connection included in the delivery

RS232-connection extendable to max. 20 m (optional)

IP-Adresse for Ethernet-control freely programmable

Minimum system-requirements): CPU 500 MHz or higher, VGA-card with small font, 128 MB memory, 10 MB of free hard disc space, CD-Rom drive, free COM-port or Ethernet-port, Windows 9X or higher, mouse, monitor refresh rate 60 Hz or higher

Technische specificaties

Power supply

230 V AC, 50 Hz ~

Power consumption

50 W

Remote control

2 x 1,5 V mignon-batteries (type AA)

Display

5 mm Tri-Color LED-modules

Resolution

2 lines, 21 visible characters

Display-colours

8 colours, 4 background colours

Display-matrix (HxW)

16x128

Display-area (HxW)

122 x 976 mm

Character height

54 mm

Readability distance

approx. 25 m

Memory-type

Flash, permanent

Memory-capacity

186,000 characters (1 MB)

No. of messages

93 with 2,000 characters

Fonts

14

Symbols

120

Interfaces

RS232, RS485, Ethernet TCP/IP

Max. cable-length

20 m (RS232)

Dimensions

158 x 1035 x 50 mm

Weight

7 kg
