Dimbare DC led voeding 12 Volt / 75 W

Terug

Artikel FR11: Dimbare led voeding. Uitgang 12 volt DC / 75 Watt Ideaal om ledstrips te dimmen aan de 230 volt zijde. BV met onze leddimmer E56.

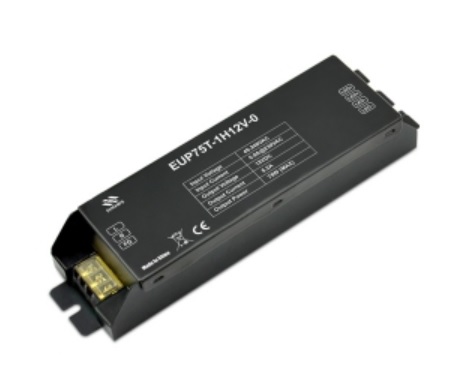

Model: EUP75T-1H12V-0

Feature

* Single-channel constant Voltage output, each

channel 6.2A Max.

* Support Leading edge (Triac) and Trailing edge

(ELV) Dimmer.

* Dimming range from 40VAC to 240V AC.

* High efficiency: up to 87%.

* Output short circuit protection; Overpower

protection; Over temperature protection.

Technical Parameters

Output Channel 1 Channel

Input Voltage 40-240VAC

Input Frequency 47-63HZ

Dimming voltage range 40VAC ~ 240 VPF *0.5(230VAC)Efficiency 87%

Dimming Mode Triac/ELV

Output Voltage 12VDC

Output Power 75W

Output Current/Each Channel 6.2A

G.W. ( g) 380g

Size 204mm*54mm*3Working Temperature -20* - 50*
